产品详情

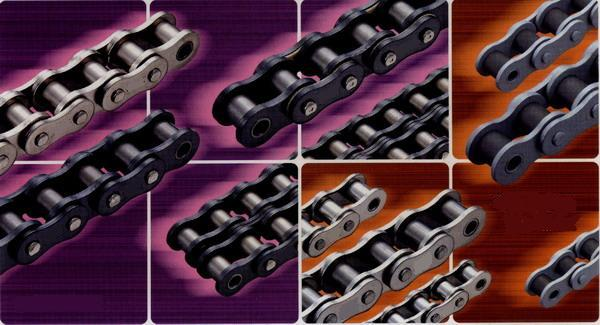

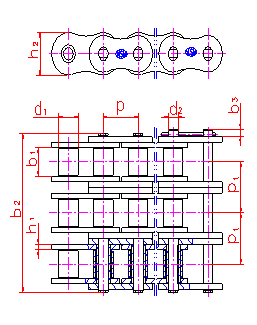

| 链号 Chain NO. | GB链号 Chain NO. | 节距 Pitch p mm | 滚子直径 Roller Diameter d1(max) mm | 内链节内宽 Inner width of inner link b1(min) mm | 销轴直径 Pin diameter d2(max) mm | 链板高度 Plate height h2 mm | 排距 Array pitch pt mm | 销轴长度 Pin length b2 mm | 止锁销附加宽度 b3 mm | 拉伸载荷 Tensile load min KN | 每米重量 Weight/m |
| 16B-1 | 16B-1 | 25.40 | 15.88 | 17.02 | 8.28 | 21.08 | - | 36.10 | 5.4 | 60.00 | 2.81 |
| 16B-2 | 16B-2 | 25.40 | 15.88 | 17.02 | 8.28 | 21.08 | 31.88 | 68.00 | 5.4 | 106.00 | 5.57 |
| 16B-3 | 16B-3 | 25.40 | 15.88 | 17.02 | 8.28 | 21.08 | 31.88 | 99.90 | 5.4 | 160.00 | 8.33 |
| 20B-1 | 20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 26.42 | - | 43.20 | 6.1 | 95.00 | 4.00 |
| 20B-2 | 20B-2 | 31.75 | 19.05 | 19.56 | 10.19 | 26.42 | 36.45 | 79.70 | 6.1 | 170.00 | 7.92 |
| 20B-3 | 20B-3 | 31.75 | 19.05 | 19.56 | 10.19 | 26.42 | 36.45 | 116.10 | 6.1 | 250.00 | 11.38 |
| 24B-1 | 24B-1 | 38.10 | 25.40 | 25.40 | 14.63 | 33.40 | - | 53.40 | 6.6 | 160.00 | 6.70 |
| 24B-2 | 24B-2 | 38.10 | 25.40 | 25.40 | 14.63 | 33.40 | 48.36 | 101.80 | 6.6 | 280.00 | 13.30 |
| 24B-3 | 24B-3 | 38.10 | 25.40 | 25.40 | 14.63 | 33.40 | 48.36 | 150.20 | 6.6 | 425.00 | 19.90 |
| 28B-1 | 28B-1 | 44.45 | 27.94 | 30.99 | 15.90 | 37.08 | - | 65.10 | 7.4 | 200.00 | 8.30 |
| 28B-2 | 28B-2 | 44.45 | 27.94 | 30.99 | 15.90 | 37.08 | 59.56 | 124.70 | 7.4 | 360.00 | 16.10 |
| 28B-3 | 28B-3 | 44.45 | 27.94 | 30.99 | 15.90 | 37.08 | 59.56 | 184.30 | 7.4 | 530.00 | 23.80 |
| 32B-1 | 32B-1 | 50.80 | 29.21 | 30.99 | 17.81 | 42.29 | - | 67.40 | 7.9 | 250.00 | 10.50 |
| 32B-2 | 32B-2 | 50.80 | 29.21 | 30.99 | 17.81 | 42.29 | 58.55 | 122.50 | 7.9 | 450.00 | 20.80 |
| 32B-3 | 32B-3 | 50.80 | 29.21 | 30.99 | 17.81 | 42.29 | 58.55 | 181.00 | 7.9 | 670.00 | 31.20 |
| 40B-1 | 40B-1 | 63.50 | 39.37 | 38.10 | 22.89 | 52.96 | - | 82.60 | 10.2 | 355.00 | 17.00 |
| 40B-2 | 40B-2 | 63.50 | 39.37 | 38.10 | 22.89 | 52.96 | 72.29 | 154.90 | 10.2 | 635.00 | 33.00 |
| 40B-3 | 40B-3 | 63.50 | 39.37 | 38.10 | 22.89 | 52.96 | 72.29 | 227.20 | 10.2 | 950.00 | 47.50 |
| 48B-1 | 48B-1 | 76.20 | 48.26 | 45.72 | 29.24 | 63.88 | - | 99.10 | 10.5 | 560.00 | 26.00 |
| 48B-2 | 48B-2 | 76.20 | 48.26 | 45.72 | 29.24 | 63.88 | 91.21 | 190.40 | 10.5 | 1000.00 | 51.00 |
| 48B-3 | 48B-3 | 76.20 | 48.26 | 45.72 | 29.24 | 63.88 | 91.21 | 281.60 | 10.5 | 1500.00 | 74.40 |
| 56B-1 | 56B-1 | 88.90 | 53.98 | 53.34 | 34.32 | 77.85 | - | 114.60 | 11.7 | 850.00 | 36.00 |
| 56B-2 | 56B-2 | 88.90 | 53.98 | 53.34 | 34.32 | 77.85 | 106.60 | 221.20 | 11.7 | 1600.00 | 71.00 |
| 56B-3 | 56B-3 | 88.90 | 53.98 | 53.34 | 34.32 | 77.85 | 106.60 | 327.80 | 11.7 | 2240.00 | 107.00 |
| 64B-1 | 64B-1 | 101.60 | 63.50 | 60.96 | 39.40 | 90.17 | - | 130.90 | 13.0 | 1120.00 | 48.00 |
| 64B-2 | 64B-2 | 101.60 | 63.50 | 60.96 | 39.40 | 90.17 | 119.89 | 250.80 | 13.0 | 2000.00 | 95.00 |
| 64B-3 | 64B-3 | 101.60 | 63.50 | 60.96 | 39.40 | 90.17 | 119.89 | 370.70 | 13.0 | 3000.00 | 143.00 |
| 72B-1 | 72B-1 | 114.30 | 72.39 | 68.58 | 44.48 | 103.63 | - | 147.40 | 14.3 | 1400.00 | 63.00 |
| 72B-2 | 72B-2 | 114.30 | 72.39 | 68.58 | 44.48 | 103.63 | 136.27 | 283.70 | 14.3 | 2500.00 | 125.00 |
| 72B-3 | 72B-3 | 114.30 | 72.39 | 68.58 | 44.48 | 103.63 | 136.27 | 420.00 | 14.3 | 3750.00 | 188.00 |
