产品详情

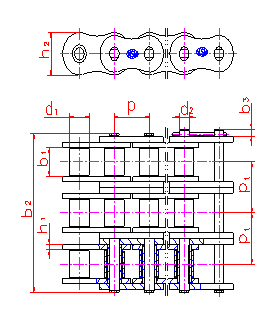

| 链号 Chain NO. | GB链号 Chain NO. | 节距 Pitch p mm | 滚子直径 Roller Diameter d1(max) mm | 内链节内宽 Inner width of inner link b1(min) mm | 销轴直径 Pin diameter d2(max) mm | 链板厚度 Plate thickness h1 mm | 链板高度 Plate height h2 mm | 排距 Array pitch pt mm | 销轴长度 Pin length b2 mm | 止锁销附加宽度 b3 mm | 拉伸载荷 Tensile load min KN | 每米重量 Weight/m |
| 80Sw-1 | 16A-1 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 32.60 | 3.6 | 70.60 | 2.76 |
| 80Sw-2 | 16A-2 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 61.90 | 3.6 | 141.20 | 5.45 |
| 80Sw-3 | 16A-3 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 91.20 | 3.6 | 211.80 | 8.15 |
| 80Sw-4 | 16A-4 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 120.50 | 3.6 | 282.40 | 10.82 |
| 100Sw-1 | 20A-1 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | - | 39.60 | 4.0 | 105.90 | 4.15 |
| 100Sw-2 | 20A-2 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 75.40 | 4.0 | 211.80 | 8.20 |
| 100Sw-3 | 20A-3 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 111.20 | 4.0 | 317.70 | 12.25 |
| 100Sw-4 | 20A-4 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 147.00 | 4.0 | 423.60 | 16.31 |
| 120Sw-1 | 24A-1 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | - | 49.90 | 4.2 | 150.00 | 6.05 |
| 120Sw-2 | 24A-2 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 95.30 | 4.2 | 300.00 | 11.99 |
| 120Sw-3 | 24A-3 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 140.80 | 4.2 | 450.00 | 17.93 |
| 120Sw-4 | 24A-4 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 186.20 | 4.2 | 600.00 | 23.82 |
| 140Sw-1 | 28A-1 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | - | 53.70 | 4.7 | 194.20 | 7.78 |
| 140Sw-2 | 28A-2 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 102.60 | 4.7 | 388.40 | 15.44 |
| 140Sw-3 | 28A-3 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 151.40 | 4.7 | 582.60 | 23.09 |
| 140Sw-4 | 28A-4 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 200.30 | 4.7 | 776.80 | 30.72 |
| 160Sw-1 | 32A-1 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 63.90 | 5.1 | 247.10 | 10.33 |
| 160Sw-2 | 32A-2 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 122.50 | 5.1 | 494.20 | 20.50 |
| 160Sw-3 | 32A-3 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 181.00 | 5.1 | 741.30 | 30.67 |
| 160Sw-4 | 32A-4 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 239.60 | 5.1 | 988.40 | 40.85 |
