产品详情

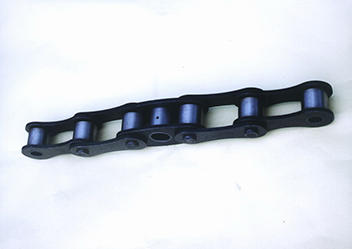

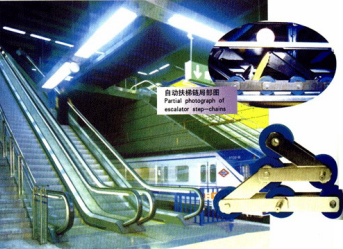

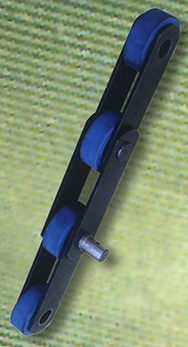

自动扶梯梯级链

原隆链号 YL Chain NO.	节距 Pitch	梯级距 Step	内节内宽 Chains inner width	滚轮直径 Roller DIA	销轴直径 Pin DIA	链板高度 Plate Height	链板厚度 Plate thickness	滚子直径 Roller DIA	最小破断载荷 Tensile Load(min)
mm	mm	mm	(mm)	mm	mm	mm	mm	KN
T135•75•75	135	405±0.2		φ75	φ10	25/30	4	/	75
T135•75•75A	135	405±0.2	27	φ75	φ14.63	32	4	/	75
T135•75•75B	135	405±0.2	27	φ75	φ14.63	30/35	5	/	75
T135•75•110	135	405±0.2	27	φ75	φ14.63	30/35	5	/	110
T135•75•110M	135	405±0.2	27	φ75	φ14.63	30/35	5	/	110
T135•75•110E	135	405±0.2	27	φ75	φ14.63	30/35	5	/	110
T135•75•120	135	405±0.2	27	φ75	φ14.63	30	5	/	120
T135•75•120A	135	405±0.2	27	φ75	φ14.63	32	5	/	120
T135•75•120E	135	405±0.2	27	φ75	φ14.63	30	5	/	120
T135•75•120S	135	405±0.2	27	φ75	φ14.63	32	5	/	120
T135•75•160	135	405±0.2	27	φ75	φ20	40/45	5	/	160
T135•75•160B	135	405±0.2	27	φ75	φ14.63	35/40	5	/	160
T135•75•160C	135	405±0.2	27	φ75	φ14.63	40/40	5	/	160
T135•75•190	135	405±0.2	27	φ75	φ14.63	40/40	5	/	190
T135•75•190B	135	405±0.2	27	φ75	φ14.63	40/45	5	/	190
T135•75•195	135	405±0.2	27	φ75	φ20	45	5/6	/	195
T135•75•195M	135	405±0.2	27	φ75	φ20	45	5/6	/	195
T135•75•205	135	405±0.2	27	φ75	φ25	45	6/8	/	205
T135X•75•110	135	405±0.2	27	φ75	φ14.63	30/35	5	/	110
T135X•75•160	135	405±0.2	27	φ75	φ14.63	35/40	5	/	160
T101•75•110M	101.25	405±0.2	27	φ75	φ14.63	30/35	5	/	110
T101•75•130	101.25	405±0.2	27	φ75	φ14.63	35	6	/	130
T101•75•160	101.25	405±0.2	27	φ75	φ20	40/45	5	/	160
T101•75•195	101.25	405±0.2	27	φ75	φ20	45	5/6	/	195
T101•75•300	101.25	405±0.2	27	φ75	φ25	45/50	7	/	300
T101•13	101.15	404.6±0.2	27		φ14.63	35	5/6	φ40	130
T101•13L	101.15	404.6±0.2	27		φ12.71	35	5/6	φ25	130
T101•13LA	101.15	404.6±0.2	27		φ12.71	35	5	φ25.4	130
T101•21	101.15	404.6±0.2	27		φ22	50	5/6	φ40	210
T101•23	101.15	404.6±0.2	27		φ22	50	5/6	φ48	230
T101•26	101.15	404.6±0.2	27		φ25	60	6/7	φ48	260
T101•26B	101.15	404.6±0.2	27		φ25	60	6/7	φ44	260
T101•29	101.15	404.6±0.2	27		φ25	60	6/7	φ48	290
T101•56	101.15	404.6±0.2	27		φ29	65	10/14	φ48	560
T133•76	133.33	400±0.2	27	φ76	φ14.63	40	5	/	130
T133G•76	133.33	400±0.2	27min	φ76	φ14.63	40	5	/	180
T133Z•76	133.33	400±0.2	27.1min	φ76	φ24	50	5	/	130
T133GZ•76	133.33	400±0.2	27.1min	φ76	φ24	50	5	/	180
T133X•76	133.33	400±0.2	27min	φ76	φ14.63	40	5	/	130
T133XG•76	133.33	400±0.2	27min	φ76	φ14.63	40	5	/	180
T133XZ•76	133.33	400±0.2	27.1min	φ76	φ24	50	5	/	130
T133XGZ•76	133.33	400±0.2	27.1min	φ76	φ24	50	5	/	180
T133GS•76	133.33	400±0.2	27min	φ76	φ14.63	33/40	5/4.5	/	180
T133S•76	133.33	400±0.2	27min	φ76	φ14.63	33/40	5/4.5	/	130
T133•76•90	133.33	400±0.2	27min	φ76	φ12.67	29/40	4/3	/	90
T133GZn•76•250	133.33	400±0.2	27min	φ76	φ25	50	6/7	/	250
T133•26	133.33	400±0.2	33.9min	φ100(外置)	φ22	60	6/7	φ39.37	260
T133•35	133.33	400±0.2	33.9min	φ100(外置)	φ30	75	6/8	φ53.98	350
T133•52	133.33	400±0.2	33.9min	φ100(外置)	φ36	75	8/10	φ63.5	520
T100•24	100	400±0.2	25.4min	φ100(外置)	φ20	60	6	φ39.37	240
T133GJZ•70	133.33	400±0.2	27min	φ70	φ14.63	35/40	5	/	180
T133GJZ•80	133.33	400±0.2	27min	φ80	φ24	45/50	5	/	220
T133ZF•80	133.33	400±0.2	27.1min	φ80	φ24	50	5	/	200
T133ZF•90	133.33	400±0.2	32.9min	φ90	φ29	60	6.5	/	310
T133GF•75	133.33	400±0.2	27min	φ75	φ14.63	40	5	/	180
T133•75•105	133.33	400+0.2/-0.1	25.1min	φ75	φ12.5	35	4	/	105
T133•75•105P	133.33	400+0.2/-0.1	25.1min	φ75	φ12.5	35	4	/	105
T133•75•105K	133.33	400+0.2/-0.1	25.1min	φ75	φ12.5	35	4	/	105
T133•75•105K RI	133.33	400+0.2/-0.1	25.1min	φ75	φ12.5	35	4	/	105
T133•75•173 20RI	133.33	400+0.2/-0.1	25.1min	φ75	φ20	45	4	/	173
T133•75•173 25RI	133.33	400+0.2/-0.1	25.1min	φ75	φ25	45	5/6	/	173
T133•100•13	133.33	399.99+0.2/-0.1	25.1min	φ100(外置)	φ16	45	4/5	φ35	130
T133•100•17	133.33	399.99+0.2/-0.1	25.1min	φ100(外置)	φ22	50	4/5	φ40	170
T133•100•30	133.33	399.99+0.2/-0.1	25.1min	φ100(外置)	φ30	80	5/6	φ60	300
T133•47	133.33	399.99+0.2/-0.1	25.1min	φ100(外置)	φ40	85	7/8	φ75	470
T135L•60	135.7	407±0.2	27min	φ60	φ14	40	5	/	120
T135.6	135.6	407±0.2	23min	φ76.2	φ12.7	32/38	5	/	127
T136•80•13	136.8	410.4+0.3 0	24min	φ80	φ15	35/38	5		128
T136•80•16	136.8	410.4+0.3 0	24min	φ80	φ15	43	5		160
T131•80•123	131	394±0.2	27min	φ80	φ14.63	30/35	5		123
T101L•1	101.6	406.4±0.2	25min	/	φ20	35	6	/	90
T67•07	67.73	406.4+0.4 0	16min	/	φ11.11	33/33/45.5	4	φ28	70
T67•09A	67.73	406.4+0.4 0	20.7min	/	φ14.29	33/39/45.5	4	φ28	90
T67•09	67.73	406.4+0.4 0	25.4min	/	φ14.29	33/39/45.5	4	φ28	90
T67•15	67.73	406.4+0.4 0	25.4min	/	φ14.29	46	4.8	φ28	150
T67•15	67.73	406.4+04 0	27min	/	φ14.29	46	4.8	φ28.4	150
T67•18	67.73	400+04 0	29.6min	/	φ18	56.3	6.35	φ32	180
T68•08	68.4	410.4+0.3 -0.1	20.7min	/	φ12.7	45.5	4	φ28	80
T68•10	68.4	410.4+0.3 -0.1	20.7min	/	φ12.7	45.5	4.8	φ28	100
T68•12	68.4	410.4+0.3 -0.1	20.7min	/	φ12.7	45.5	4	φ28	120
T68•13	68.4	410.4+0.3 -0.1	20.7min	/	φ14.29	45.5	4.8	φ32	130
T68•16	68.4	410.4+0.3 -0.1	29.6min	/	φ14.29	45.5	4.8	φ28	160
T68•17	68.4	410.4+0.3 -0.1	29.7min	/	φ17	45.5	4.8	φ32	170
T68•24	68.4	410.4+0.3 -0.1	36min	/	φ22	52	9.5	φ36	240
T68•25	68.4	410.4+0.3 -0.1	29.7min	/	φ18	56	6	φ32	250
T102•39	102.6	410.4+0.3 -0.1	45min	/	φ31	52/52/68	9.5	φ62	390
T136•76•80	136.8	410.4+0.3 0	23.6min	φ76.2	φ15	35	5		80
T136•76•120	136.8	410.4+0.3 0	23.6min	φ76.2	φ15	35	5		120
T136•76•160	136.8	410.4+0.3 0	23.6min	φ76.2	φ20	45	5		120
T100G	100	400±0.2	24min	/	φ20	60/70	5	φ52	250
T100•24	100	400±0.2	25.4min	/	φ20	60	6	φ39.37	240
T100•25	100	400±0.2	27.5min	/	φ20	60/70	5	φ52	250
